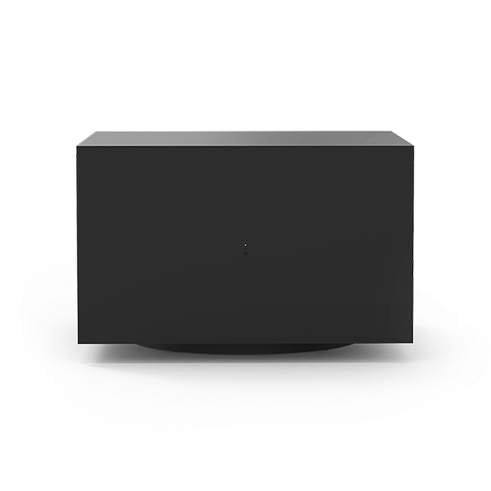

Monoblock

Monoblock

PERFORMANCE
INPUT SENSITIVITY FOR MAX SWING: 1.25V/rms (3.5V/pp)

INPUT IMPEDANCE: 10kOhm

VOLTAGE GAIN: +29dB

ATTENUATION: 0 | -6dB | -12dB | -18dB

POWER OUTPUT: 1000W @ 4 Ohm

PEAK OUTPUT VOLTAGE: 90V/pp

FREQUENCY RANGE: 10Hz – 50kHz (-3dB)

DAMPING FACTOR: > 10,000

OUTPUT NOISE: 1mV/pp

DYNAMIC RANGE: 120dB

THD+N AT 1 KHZ: 0.1%

MAINS VOLTAGE: 230V/115V ~ (50/60Hz)

INPUTS: 1 x XLR

SPEAKER TERMINAL:

MUNDORF OFC PURE COPPER Ø8mm SILVER-PLATED

GENERAL
COLOR AND FINISH:

– BLACK ANODIZED ALU COVER WITH DIAMOND CUT EDGE

– SILVER ANODIZED ALU COVER WITH DIAMOND CUT EDGE

DIMENSIONS: WIDTH 489mm x HEIGHT 318mm x DEPTH 480mm

WEIGHT: 67kg
