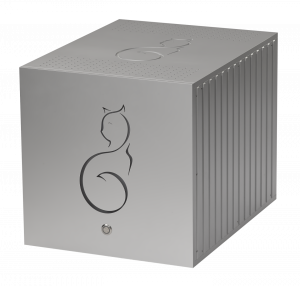

About THE LITTLE
We call it THE LITTLE, but there’s very few things that are little about this amplifier. This packs a punch and is our most affordable amplifier yet. Our goal has been to create a smaller unit which still retains the excellent characteristics of its bigger brethren.
Upgraded internals
It uses 2 x 1.5 kVA transformers as the power source. The whole unit is balanced and the capacitor bank is at 296000μf, giving it an extreme response time. As always, we only use the best capacitors available – there’s no shortcuts or cheap parts here. That’s why we use Mundorf electrolytic capacitors.
THE LITTLE Features
INPUT
- 2 x Gold-plated RCA
- 2 x XLR (balanced)
OUTPUT
- 2 x 2 gold-plated speaker terminals (left/right)
FEATURES
- Power button
THE LITTLE Specifications
- Effect:
Stereo: 2 x 400 W in 4 ohms / 2 x 200 W in 8 ohms - The black model has 2 x 400W in 8 ohms
- Signal to noise ratio: 132 dB
- Distortion: THD+N 0.0001%
- Capacitor bank: 296.000 μf
- Speaker impedance: Down to 4
- Dampening factor: 400
- Frequency range: 0 – 500.000 Hz
- Class A/B construction
MEASUREMENTS
- Depth: 51 cm
- Width: 40 cm
- Height: 42 cm
- Weight: 100 kg
POWER
- Power requirements: 100-120 / 220-240 VAC
- Power consumption: 700W
- The black model is installed with a very special torroid transformer, featuring a 3KW copper-core and a 9,5KW iron-core
