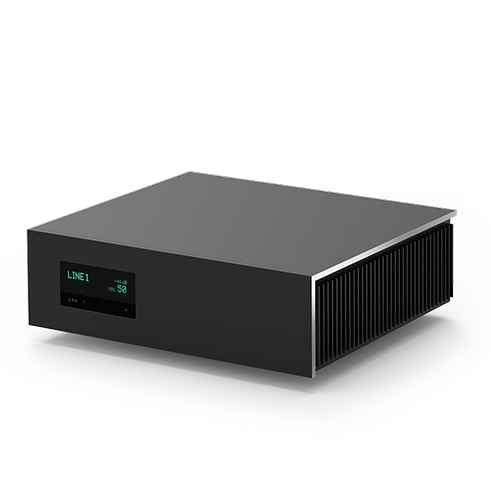

Tube D/A Converter

PERFORMANCE
INPUT IMPEDANCE: SPDIF 75 Ohm | XLR 110 Ohm

VOLTAGE GAIN: +18dB

PEAK OUTPUT VOLTAGE: 12V/pp

FREQUENCY RANGE: 32kHz – 192kHz

INTERNAL DIGITAL FORMAT: 24bit / 192kHz

REFERENCE CLOCK: 49,152MHz

OUTPUT IMPENDANCE: 240 Ohm

DYNAMIC RANGE: 132dB

THD+N AT 1 kHz: 0.1%

MAINS VOLTAGE: 230V/115V ~ (50/60Hz)

INPUTS: 2 x USB | 1 x XLR | 2 x RCA | 1 x OPTICAL

GENERAL
COLOR AND FINISH:

– BLACK ANODIZED ALU COVER WITH DIAMOND CUT EDGE

– SILVER ANODIZED ALU COVER WITH DIAMOND CUT EDGE

DIMENSIONS: WIDTH 446mm x HEIGHT 160mm x DEPTH 410mm

WEIGHT: 24kg
