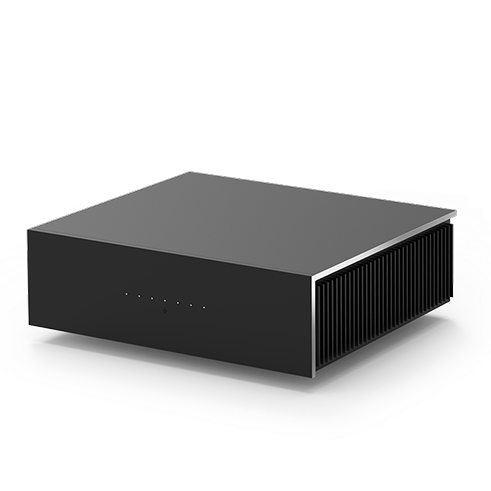

Tube Preamplifier

PERFORMANCE
INPUT SENSITIVITY FOR MAX SWING: 0.5V/rms

INPUT IMPEDANCE: 10kOhm

VOLTAGE GAIN: +18dB

ATTENUATION: -96dB (1dB STEP)

PEAK OUTPUT VOLTAGE: 12V/pp

FREQUENCY RANGE: 10Hz – 50kHz (-3dB)

OUTPUT NOISE: 1mV/pp

DYNAMIC RANGE: 120dB

THD+N AT 1 KHZ: 0.1%

MAINS VOLTAGE: 230V/115V ~ (50/60Hz)

INPUTS: 4 x XLR

OUTPUTS: 2 x XLR | 2 x RCA

GENERAL
COLOR AND FINISH:

– BLACK ANODIZED ALU COVER WITH DIAMOND CUT EDGE

– SILVER ANODIZED ALU COVER WITH DIAMOND CUT EDGE

DIMENSIONS: WIDTH 446mm x HEIGHT 160mm x DEPTH 410mm

WEIGHT: 25kg
